1,000.00 / piece
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Size Range | 15mm To 300mm |
| Country of Origin | India |
| Model No | QT 260 |
| Click to view more | |
Product Details
Size
15 MM TO 300 MM
Brand Name
QTC
Material
CAST IRON
Finishing
Polished
Color
DARK GREEN/BLUE
Condition
New
Automatic Grade
MANUAL/AUTOMATED
Actuation Type
PNEUMATIC/ELECTRIC
Usage
WATER/OIL/GAS
Certification
ISO 9001:2008 Certified
Packaging Type
GUNNY BAG PACKING
Mounting Type
Horizontal
Valve Size
15MM TO 300MM
Working Pressure
10 KG/CM2
Specialities
12 TO 18 MONTHS WARRENTY
Type
Diaphragm Valve
Weight
5Kg
Warranty
12 TO 18 MONTHS
Media
WATER/OIL/GAS
Number Of Way
2way
Manufacturing Standard:
BS-5156
Inspection & Testing
BS-6755 PART-I
Material of Construction
Cast Iron /WCB/WC5/WC6/WC9/ CF8/CF8M/CF3 / CF3M4A/5A & other special exotic Alloy
End Connection
Flanged Ends and Butt Weld,FLANGE END
Pressure Rating
ASA 150#/PN 10/PN 16

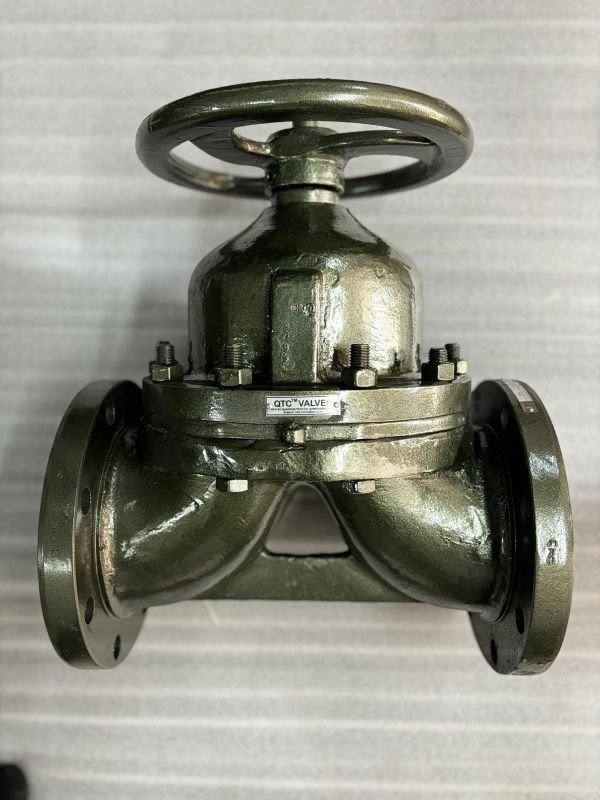

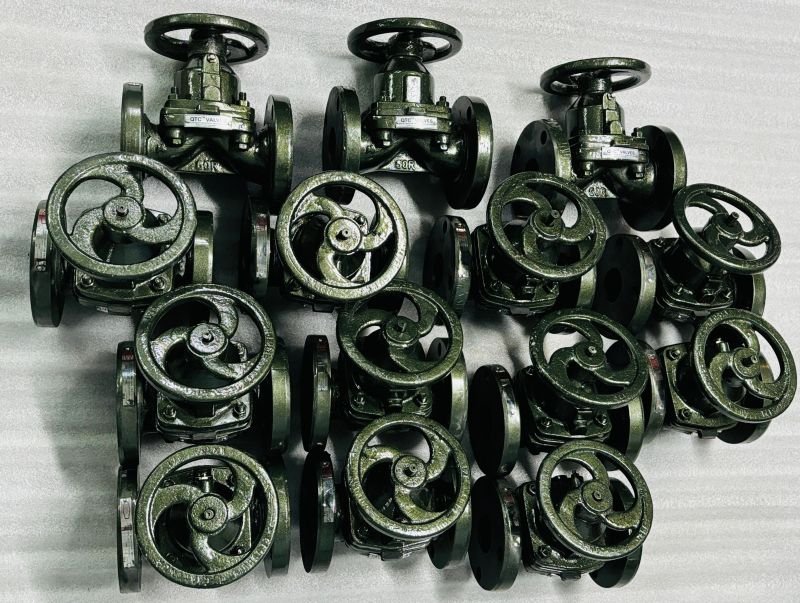

“QTC BRAND “ DIAPHRAGM VALVE CAST IRON - DIAPHRAGM VALVE FLANGED END ASA 150#
BODY : CAST IRON - IS 210 Gr FG 200/220 AND LINED WITH EBONITE
BONNET : CAST IRON
ENDS : FLANGED TO ANSI B 16.5 (150#)
PARTS : ALL WETTED PARTS OF VALVE & RAISED PORTION OF FLANGES WILL BE LINED WITH RUBBER LINNING
LINING THIKNESS: MINIMUM 3.00 MM
HYD-TEST PRESS. : BODY : 20 Kg/Cm2
: SEAT : 15 Kg/Cm2
